Epox - nowa płyta główna.

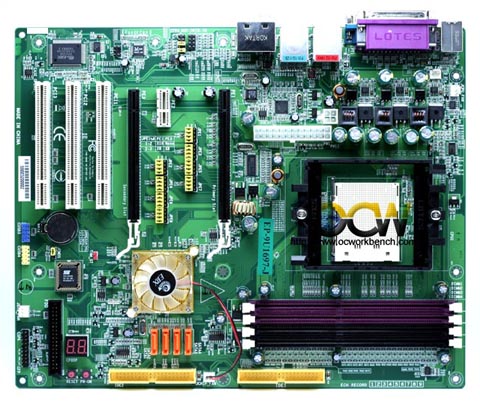

Firma Epox zapowiedziała, że już wkrótce w jej ofercie pojawi się nowa płyta główna EP-9U1697 oparta o chipset ULI M1697. Platforma przeznaczona jest dla procesorów AMD Sempron/Athlon-64/ Athlon-64 FX/ Athlon X2, posiada cztery sloty pamięci DDR (2.5v DDR-333/400/500), dwa porty IDE, cztery SATAII, osiem USB 2.0 oraz dwa sloty PCI Express (x16). Ponadto urządzenie zawiera zintegrowany LAN oraz kartę muzyczną (ALC850). Producent nie zapomniał także o overclockerach, wprowadzając możliwość zmiany napięcia między innymi dla CPU, chipsetu, czy pamięci. Jak dotąd nie wiadomo, kiedy nowy EPOX pojawi się w sprzedaży.
Specyfikacja:
Chipset voltage adjust Yes, 2V +0.1V - +0.2V
DDR voltage adjust Yes, 2.5V - 3.2V
CPU Vcore Yes, 0.8V - 1.75V
HT bus voltage Yes ; 1.2V~1.6V
HT clock adjust Max. 400MHz , HT ratio up fr X6
PCI-E speed range 100MHz - 200MHz
CPU Socket:
Support Socket-939 based AMD Sempron/Athlon-64/ Athlon-64 FX/ Athlon X2 , 1.6/2.0GTs Hyper Transport processors with up to 4800+
Chipset:
ULi M1697
System Memory:
Four 184-pin DDR SDRAM DIMM sockets
Support single-sided or double-sided 2.5v DDR-333/400/500 DIMMs with dual channel architecture in 128/256/512Mb technologies
Support Asynchronous clocking mode between FSB and DIMM
Support up to 4 GB system memory
Expansion Slots:
Three PCI connectors compliant with PCI v2.3
One PCI-Express (x1) connectors compliant with PCI Express 1.0a
Two PCI Express (x16) connector compliant with PCI Express 1.0a
IDE:
Two IDE interface (up to 2 IDE devices) with UDMA-33, ATA-100/133 support from embedded IDE controller
USB:
Eight USB connectors compliant with USB2.0 from embedded USB controller (4 connectors at rear panel)
S-ATA RAID:
Four S-ATA II ports with up to 300MB/s from chipset with RAID 0,1,0+1,5
LAN:
One 10/100 Ethernet from Realtek RTL8201CL
One Gigabit Ethernet from Marvell 88E8053 (Colayout with 8055/8036) for 9U1697-J
Audio:
Selectable 2, 6 or 8-CH audio Realtek ALC850 AC97 compliant CODEC
Support Aux-In, CD-In
Optical & Coaxial S/PDIF-out available on rear panel
Support Jack detection for fool-proof audio device installation
I/O:
Onboard EPoX EP-1308 LPC bus I/O controller
Legacy peripheral interface for PS/2 keyboard & mouse, FDD, Parallel, One Serial and IrDA (v1.0 compliant)
Hardware Monitoring for fan speed monitoring, CPU MOS and System temperature.
Intelligent fan speed control for CPU-fan (DC) and Chassis-fan for quiet operation
Special Features:
Support KBPO (Keyboard Power ON) function
Support Wake-On-LAN by PME
Onboard Post-Port LED display
Onboard EZ-Button for convenient power-on
Support Thermal Stick (Cable for optional)
Support Asynchronous clocking mode between HT frequency and PCI/PCI-E
PowerBIOS for excellent overclocking features:
Programmable FSB and PCI Clock output frequency with 1MHz fine tuning
Support BIOS adjustable CPU multiplier, FSB clock, PCI-E x16 clock, DIMM frequency
Support BIOS adjustable CPU Core voltage, Chipset voltage, DIMM voltage settings
Powerful utilities for Windows:
Thunder Probe for system hardware monitoring
Magic Flash for BIOS update without requiring DOS flash utility and bootable diskette
Magic Screen for personal bootup screen design
Form Factor:
305mm x 245mm x 40mm, ATX Size
