ABIT UL8 Pro

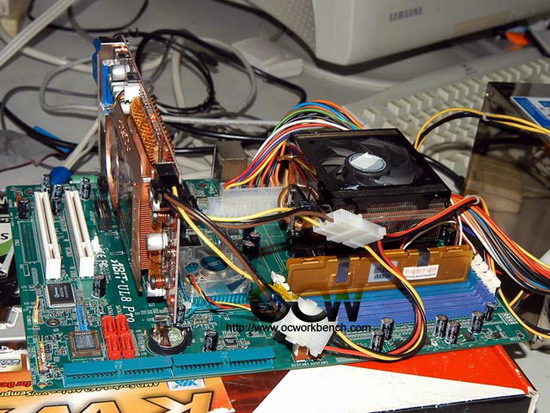

OCWorkBench przedstawiło nową płytę Abit'a opartą na układzie ULi M1697. Nietypowy dla wyrobów Abit'a kolor laminatu zawiera na sobie : obsługę procesorów Athlon 64/FX/X2, 4 porty SATA II + NCQ, RAID 0,1,0+1,5, cztery banki dla pamięci DDR 400, 2 PCI, jeden PCIexpres x16 i jeden PCIexpres x1. O walory słuchowe zadba zintegrowana dźwiękówka (7.1 channels HD Audio CODEC). Napięcie dla pamięci możemy regulować w zakresie 2.5V do 3.2V Dokładne dane płyty w dalszej części newsa ...



CLK 200-400MHz
VCore
Max = default + 0.35V (0.025v intervals)

VDIMM
DRAM: range from 2.50 , 2.55 , 2.60, 2.65, 2.70, 2.80, 2.90, 3.0 , 3.1 & 3.2v

ULI M1697 Based AMD K8 939 ATX Mainboard
2GHz HT, Dual DDR400, PCIE Graphic, GbE LAN
SATAII 3G, 7.1 CH HD Audio, ABIT SoftMenu Technology
CPU
 Supports Socket 939 Athlon 64X2/64FX/64/Sempron Processor with 2GHz system bus using Hyper Transport™ Technology
 Supports AMD CPU Cool ‘n’ Quiet Technology
Chipset
 ULI M1697 single chip
Memory
 Four 184 -pin DIMM sockets
 Supports Dual DDR400 Un-buffered ECC memory
 Supports maximum memory capacity up to 8GB
Graphic
 Discrete (non-integrated) – Use PCI-Express X16 Expansion slot
ABIT Engineered
 ABIT SoftMenuTM Technology
 ABIT CPU ThermalGuardTM Technology
Serial ATA
 4 x SATA 3.0Gb/s
Audio
 On board 7.1 channels HD Audio CODEC
 Supports auto jack sensing and optical S/P DIF Out
LAN
 On board 10/100/1000M ethernet controller

Internal I/O Connectors
 1 x PCI-E X16, 3 x PCI-E X1, 2 PCI slots
 1 x Floppy Port supports up to 2.88MB
 2 x Ultra DMA 133/100/66/33 IDE Connectors
 4 x SATA 3G Connectors
 2 x USB 2.0 headers; 1 x CD-IN header
Back Panel I/O
 1 x PS/2 Keyboard, 1 x PS/2 Mouse
 1 x COM port, 1 x LPT port, 1 x S/P DIF Out
 2 x Audio connector (Line Out, Line-in, MIC-in)
 4 x USB ports, 1 x RJ-45 LAN port
Form Factor
 ATX form factor (305x 245mm)
