Prawdziwie Medialna skrzynka ...

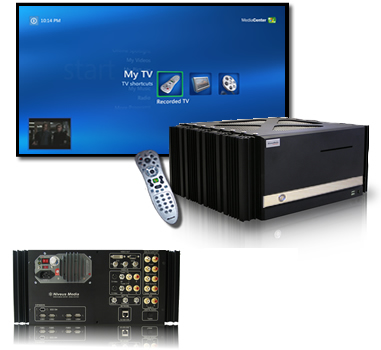

Denali Limited Edition HDTV Media Center PC ... co kryje ta przydługa nazwa ? Jak twierdzi producent, jest to pierwsze urządzenie które umożliwia przechowywanie 1 TB danych. Sercem Media Center jest procesor P4 3.4Ghz HT wspierany przez 2GB pamięci DDR. Zawiera w sobie cztery tunery TV (dwa NTSC i dwa ATSC / HDTV), kartę dźwiękową 24-bit/192Khz (High Definition 8-Channel Audio), podwójne DVD (umożliwia kopiowanie bezpośrednio z płyty) a o obraz zadba ATI X850 ISF PCI Express. Całością steruje Windows XP Media Center Edition 2005 a w prąd zaopatruje zasilacz 550W. Ceny na szczęście nie podali ... ufff ... (podają tylko na e-mail).
Dokładne dane techniczne
Processors
Intel Pentium 4 (3.4Ghz) w/ Hyper Threading Technology, FSB 800Mhz, 1MB L2 Cache
Chipset
Intel® 915P, Intel® ICH6R

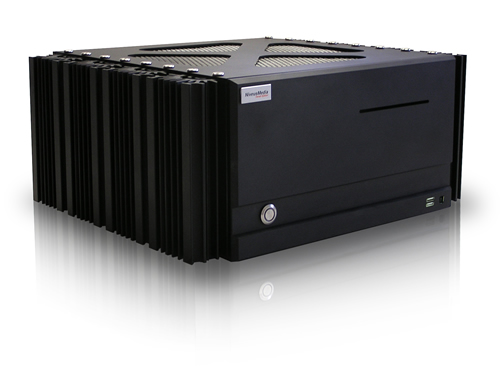

Chassis - learn more...
Black Anondized Niveus Heatsink Case with proprietary Niveus Passive Cooling System
Dimensions: 17.25" (W) x 15" (D) x 8.25" (H w/feet)
Weight: Approx 60 lbs
Operating System
Microsoft® Windows® XP Media Center Edition 2005 with High Definition Television and all recent updates
Television Tuners
NTSC - Dual "ISF Certified" Cable & Satellite Ready Tuners w/ full hardware MPEG-2 compression, a 3D comb filter, and advanced noise reduction for advanced Personal Video Recorder capabilities, Independent Inputs (S-Video, RF, RCA Audio Jacks)
ATSC - Dual HDTV Tuner able to receive Free Over the Air High Definition Television Broadcasts in North America.
FM Tuner
Stereo FM Terrestrial Radio
Audio
Intel High Definition Audio 8-channel CODEC
5.1 / 6.1 / 7.1 Digital Surround Sound
192KHz/24-bit audio output and S/PDIF out interface (Optical Toslink & Coax)
Jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different audio zones
Two Channel Audio Inputs
Graphics
PCI Express x16
ATI X850XL 256-bit, 16.0GB/sec. Memory Bandwidth, 16 Rendering Pipelines, 520 Engine Speed, Dual Integrated 10 bit per channel 400MHz DACs
Cooling: Niveus Proprietary Passive Cooling System, no fans
Quad-Channel GDDR3 memory
DVD and HDTV-ready MPEG-2 decoding up to 1920x1080i resolutions
Lossless Color Compression (up to 6:1) at all resolutions, including widescreen HDTV resolutions
Integrated HDTV Encoder
Advanced adaptive de-interlacing
WMV9 decode acceleration
OpenGL® 2.0 Optimizations and Support
Microsoft® DirectX® 9.0 Shader Model 3.0 Support
Maximum 3D Resolution: 16.7M colors at 2048x1536
Outputs: DVI, VGA, Component (YPbPr - via Niveus Exclusive BNC connectors)
ISF Certified - tested and verified to meet a superior level of technical performance, and the approval of the most discerning eye and ear.
Storage - learn more...
Internal: Two 3.5" SATA Consumer Electronic Grade Hard Drives; 1000GB (1 Terabyte) total internal storage standard
Mounting: Anti-Vibration and Anti-Sound Screwless Design - Niveus Proprietary Passive Cooling System
External: Supports USB 2.0 and IEEE1394 (Firewire) external storage
Network: Out of the box support for the Niveus Terabyte A/V Storage Server; Add multiple Terabytes of Network Storage, with integrated support for Microsoft Media Center 2005
Optical Disk Drive
Multi Format DVD & CD Recorder
Slot Loading Design for reduced noise and sleek design
3x Speed DVD-RAM Writing, 8x Speed DVD-R Writing, 4x Speed DVD-RW Writing, 8x Speed DVD+R Writing, 4x Speed DVD+RW Writing, 24x Speed CD-R Writing, 10x Speed CD-RW Writing, 24x Speed CD-ROM Reading, 12x Speed DVD-ROM Reading, Buffer Under Run Protection, DVD MULTI Read/Write Support
Memory
2GB DDR400 PC3200 Memory Standard
Dual channel memory architecture
4 x 184-pin DIMM sockets
Networking
10/100/1000 Base-T Gigabit Ethernet LAN via PCI Express
Expansion Ports
USB 2.0: 2x Front Panel, 4x Rear Panel
IEEE1394 (Firewire): 1x Front Panel, 1x Rear Panel

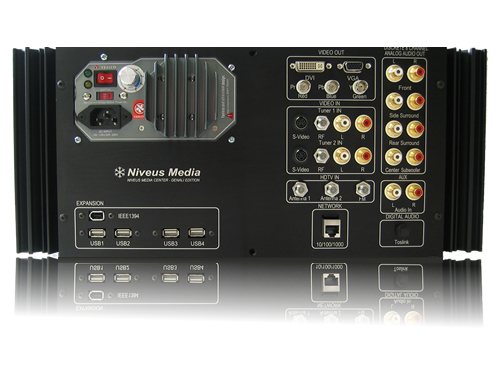

Rear Panel See Rear Panel Port Diagram [Right Click to Download 949KB .JPG]
Power
550 Watt Internal "Fanless" Power Supply w/ over power protection
Unique Rounded Heat Sink Design
230 Volt / optional 115 Volt
