Tyan Thunder K8QE - nowa platforma dla serwerów i stacji roboczych

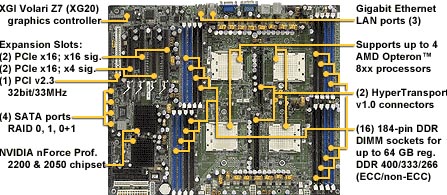

Dla wszystkich profesjonalistów, wymagających maksymalnej wydajności od swojego sprzętu, firma Tyan przygotowała nową płytę główną, Thunder K8QE. To potężne urządzenie wyposażone zostało w cztery gniazda procesora ( socket 940) i przeznaczone jest zarówno dla serwerów jak i stacji roboczych. Platforma zbudowana w oparciu o chipsety NVIDIA nForce Professional 2200 oraz NVIDIA nForce Professional 2050 posiada szesnaście slotów pamięci DDR, cztery złącza PCI Express x16, osiem portów USB 2.0 i cztery SATA (raid 0,1, 0+1). Ponadto produkt zawiera zintegrowaną grafikę XGI Volari™ Z7 z 16MB pamięci DDR a także gigabitowy kontroler sieci (trzy porty). Cena urządzenia nie jest znana, można jednak przypuszczać, że będzie wysoka.



Specyfikacja:

Processor
• Quad µPGA 940-pin ZIF sockets
• Up to four AMD Opteron™ 800 series processors
• Four onboard 4-phase VRMs

Chipset
• NVIDIA nForce Professional 2200 (CK804pro)
• NVIDIA nForce Professional 2050 (IO4)
• Winbond™ W83627HF Super I/O ASIC
• Three Analog Devices ADT7468 Hardware
• Monitoring IC

Memory
• 128-bit dual channel memory bus
• Sixteen 184-pin DDR DIMM sockets (4 per CPU)
• Supports up to 64GB of Registered DDR mem.
• Supports ECC type memory modules
• Supports four rank memory modules
• Supports DDR 400 / 333 / 266 memory

Expansion Slots (Total of five usable slots)
• Two x16 PCI Express slots with x16 signal
• Two x16 PCI Express slots with x4 signal
• One 32bit/33MHz PCI v2.3 slot

Integrated I/O
• One floppy connector supports up to two drives
• One parallel port header and two serial ports
(one connector, one header)
• Eight USB 2.0 EHCI ports
(two rear connectors & six headers)
• PS/2 mouse and keyboard connectors

System Management
• Modular BMC 2x25pin header for SMDC support
• Six 4-pin fan headers support tachometer
monitoring & smart FAN control (PWM), four 3-pin
fan headers support tachometer monitoring
• Temperature and voltage fan monitoring
• Port 80h LED display

Integrated LAN Controllers
• Two Marvell® 88E1111 GbE PHY
- Each one has RJ-45 LAN connector with LEDs
- Each one has front panel LED header
• One Intel 82541 GbE LAN controller
- RJ-45 LAN connector with LED

Integrated PCI Graphics
• XGI Volari™ Z7 (XG20); PCI interface
• 16MB DDR memory

Integrated ATA-133
• Two ATA-133 Channels for up to four
• ATA-133 devices

Integrated SATA Controller
• Four Integrated dual port SATA Controllers
(Two from CK804pro and two from IO4)
• Supports up to eight SATA drives
• Supports up to 3.0Gb/s
• Supports four independent SATA ports
• Supports RAID 0, 1, 0+1

BIOS
• Phoenix BIOS on 8Mbit LPC Flash ROM
• ACPI 2.0
• Serial Console Redirect
• USB device boot
• 48-bit LBA Support
• Power management: S0, S1, S4, and S5

Form Factor
• SSI MEB footprint (13"x16"; 330.2x406.4mm)
• EPS12V/SSI v3.5(24 + 8 + 8) power connectors
• Serial (one) and VGA (one) connectors
• Stacked USB 2.0 connectors
• Stacked PS/2 keyboard and mouse connectors
• Three RJ-45 LAN connectors with LEDs

HyperTransport™ Connectors
• Two HyperTransport™ v1.0 Connectors spec

Intelligent Platform Management Interface Header
• TYAN Server Management Daughter card
(optional) supports features listed below via
IPMI header (SMDC/TSO Support)
• Renesas Baseboard Management Controller
(BMC); tailored for IPMI 2.0 Spec.
• Supports KCS and BT styles
• Flexible Windows & Linux Management Solution
• Supports RMCP and SNMP protocols
• Supports ASF standard and EMP
• I2C serial multi-master controllers and UARTs
• Build-in IPMB connector
• Remote power on/off and reset support
(IPMI-over-LAN)
